    Train-O-Matic 02010207 - Lokommander II Mini W6P 6 Pins Nem651 kabel 6 draden (52)

    View everything from the category Train-O-Matic
    EUR 21,50
    Add to wish list
    Product Data Sheet
    In Stock: 20
    Add to favorites
    • 14 days cooling-off period
    • Free shipping via DPD from  €100,- within the Netherlands
    Train-O-Matic 02010207 - Lokommander II Mini W6P 6 Pins Nem651 kabel 6 draden (52)
    Train-O-Matic 02010207 - Lokommander II Mini W6P 6 Pins Nem651 kabel 6 draden (52)
    EUR 21,50
    • Product description and specifications
    • Documents

    Product description

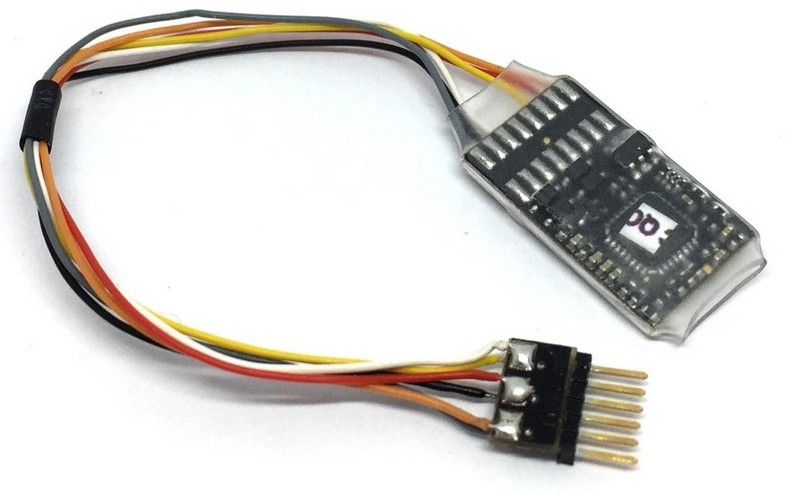

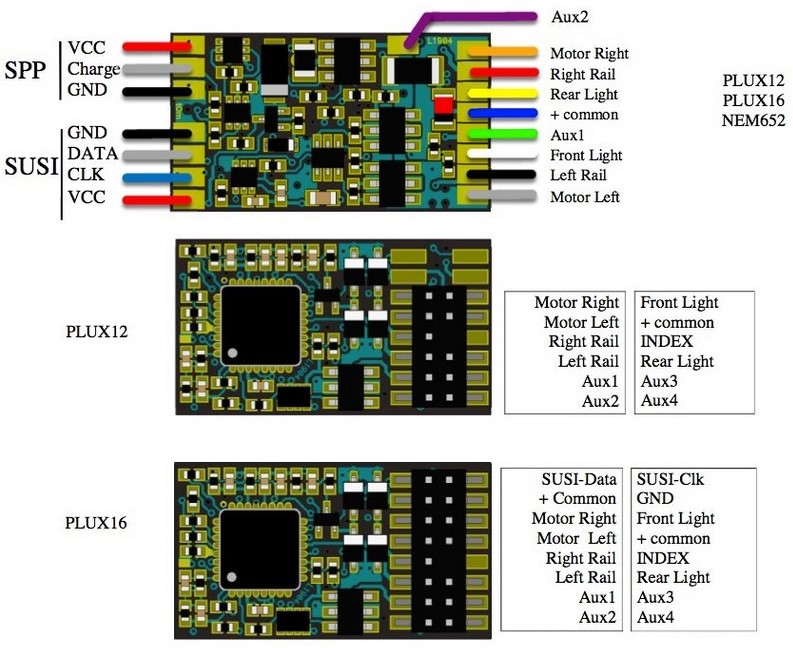

    6 wires + NEM651 connector 19.5 x 11 x 3.3 mm

    4x AUX (1 wire, 3 soldering pads)

    SUSI: Soldering pads

    Lokommander 2 decoder series
    • NMRA compliant DCC locomotive decoder
    • Short (1-127) and long (128-9999) configurable addresses
    • 14, 28/128 speed steps
    • Maximum motor current 1000mA
    • Load compensation and BEMF
    • Speed set at 3 points (Vmin, Vmid, Vmax) or in tabular form
    • Shunting speed
    • Constant distance braking, activated on ABC/DC sector or at zero speed
    • Reduced speed drive on ABC Slow Speed section
    • Penduling function (Push-Pull) without or with intermediar stop
    • Up to 10 dimmable auxiliary outputs
    • Function output maximum 200 mA per output, maximum of all outputs 400mA
    • Output Mapping to functions F0, F1-F12
    • Short-circuit and over-current protection of motor and auxiliary outputs
    • Bidirectional communication RAILCOM
    • SUSI© and LocoWire© interface
    • Outputs for Smart Power Pack (SPP ©)
    • Electromagnetic uncoupler drive capability
    • Upgradable software via the programmer, even with the decoder mounted in the locomotive
    • Usable in H0, TT and N scale models
    • Supply voltage 4-24V
    • Ability to set different speeds for forward and reverse

    Documents

    Handleiding

    Specifications

    BrandTrain-O-Matic
    CategoryTrain-O-Matic
    Vendor CodetOm 02010207
    Scale

    Select the desired scale

    		ScaleH0
    TT
    N
    Connector

    Filter on the desired decoder connection

    		ConnectorNEM651 6-pin
    Internetlink

    Useful Internetlink

    		InternetlinkTrain-O-Matic Downloads
